DESCRIPTION

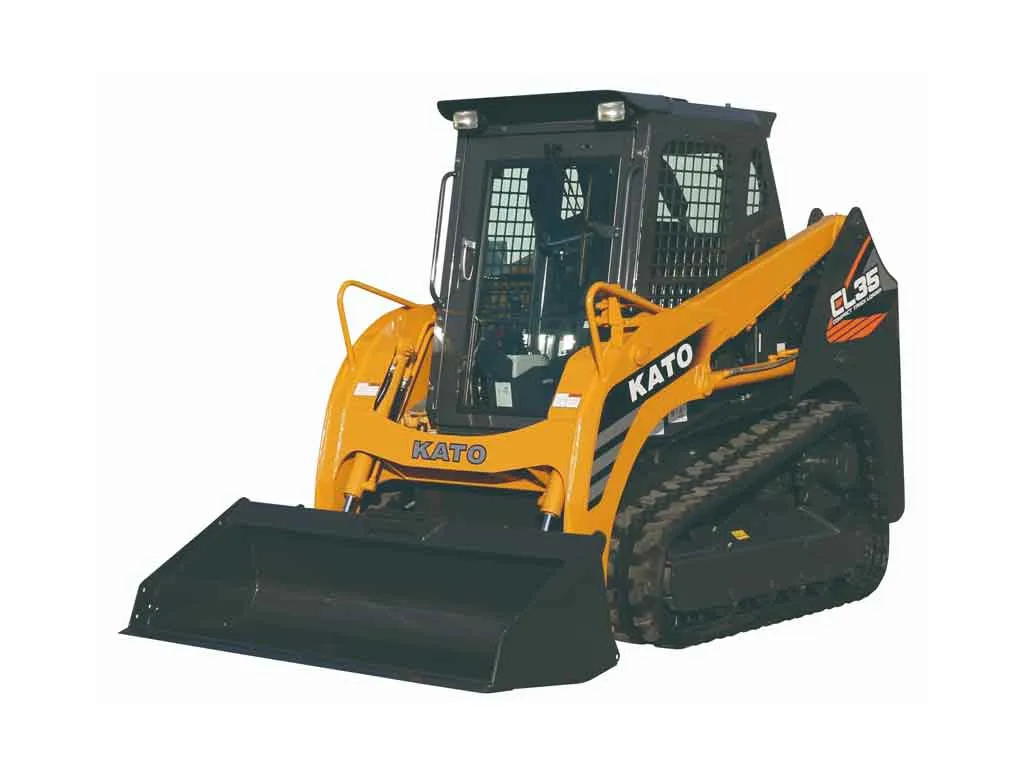

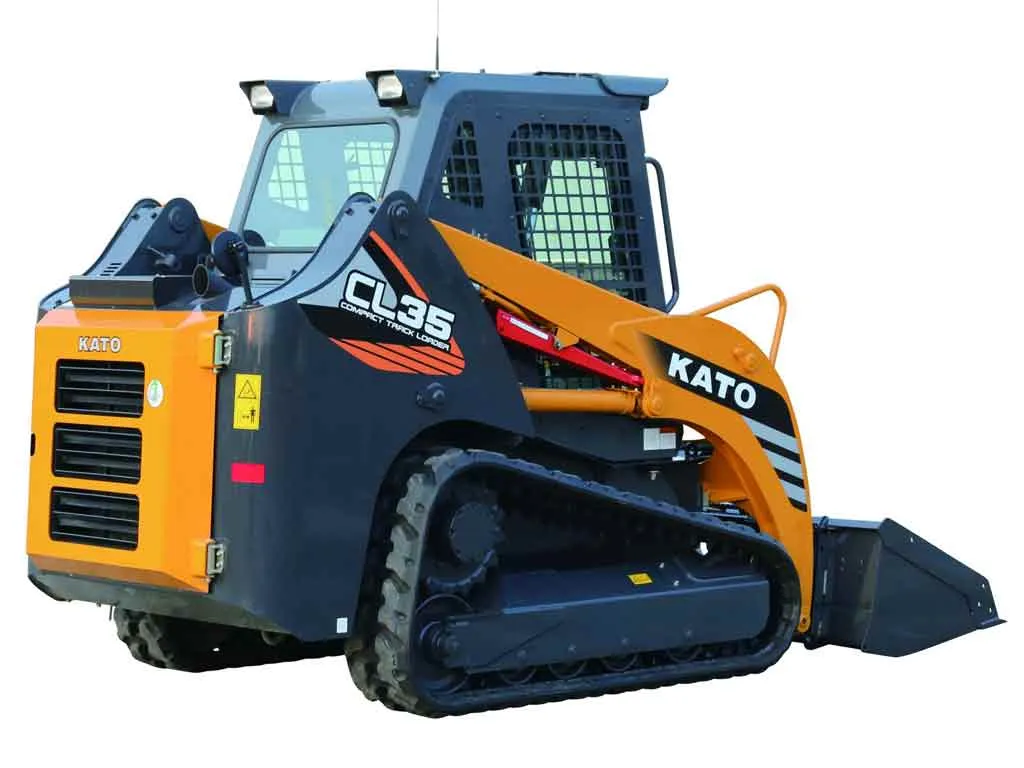

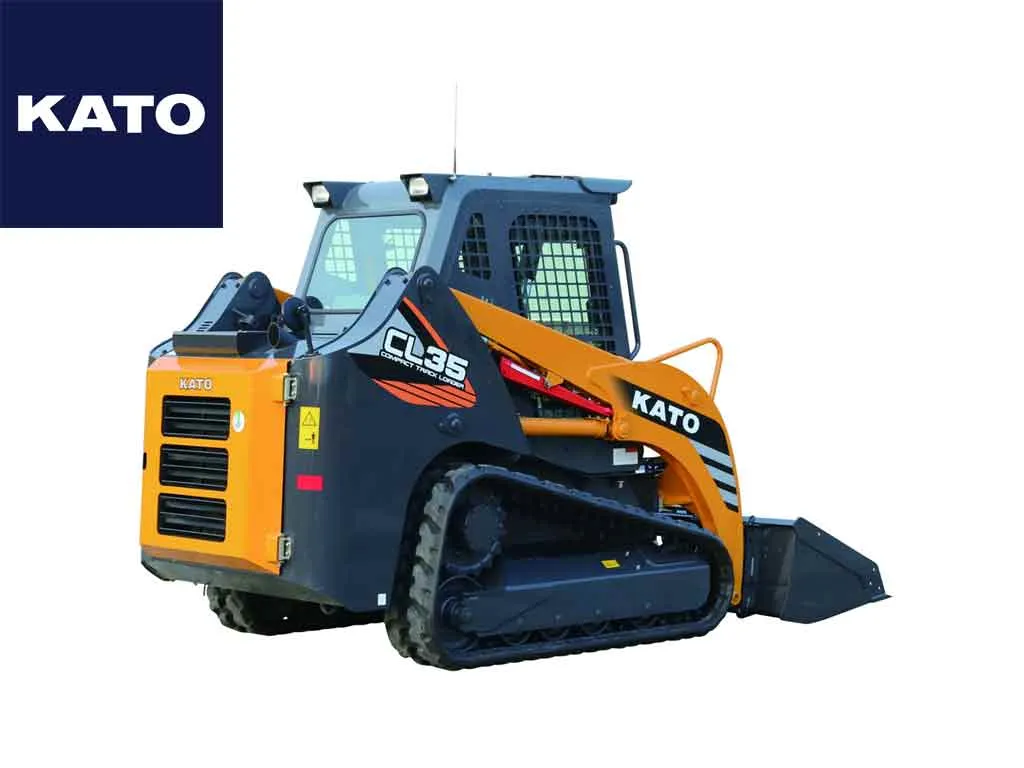

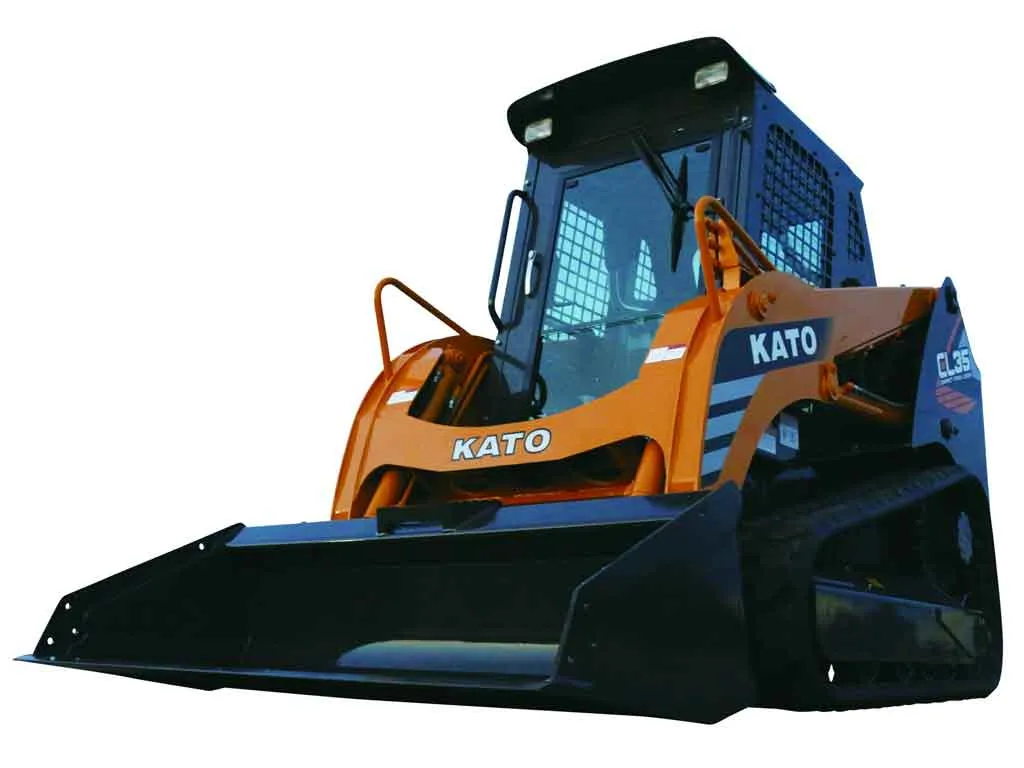

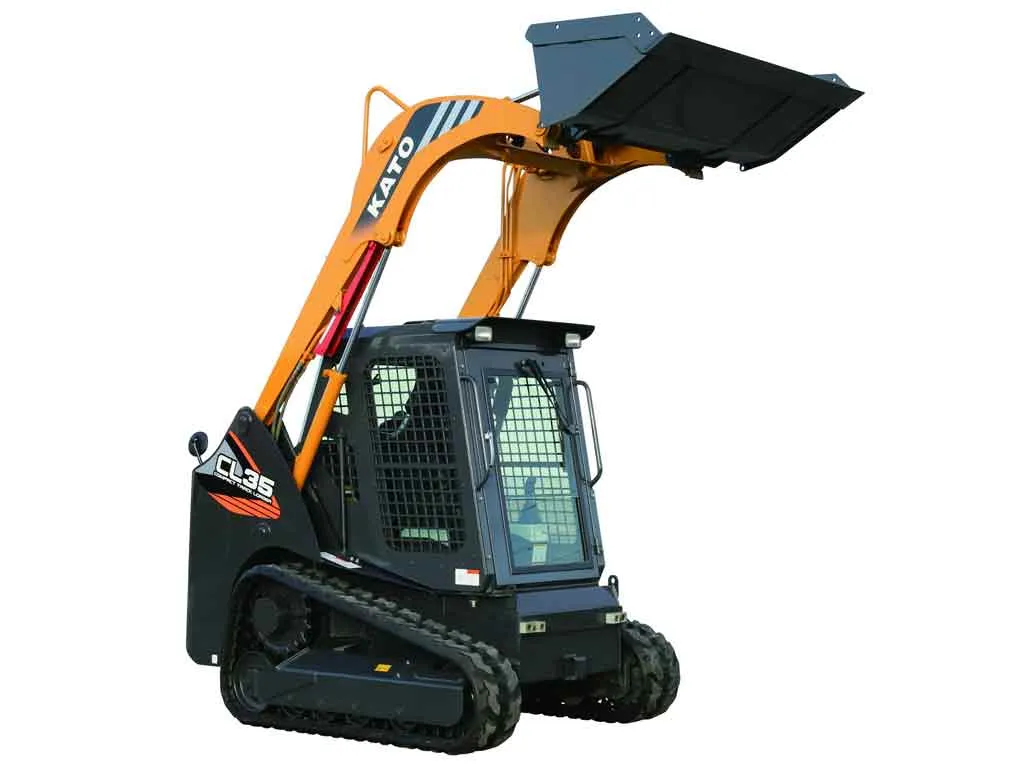

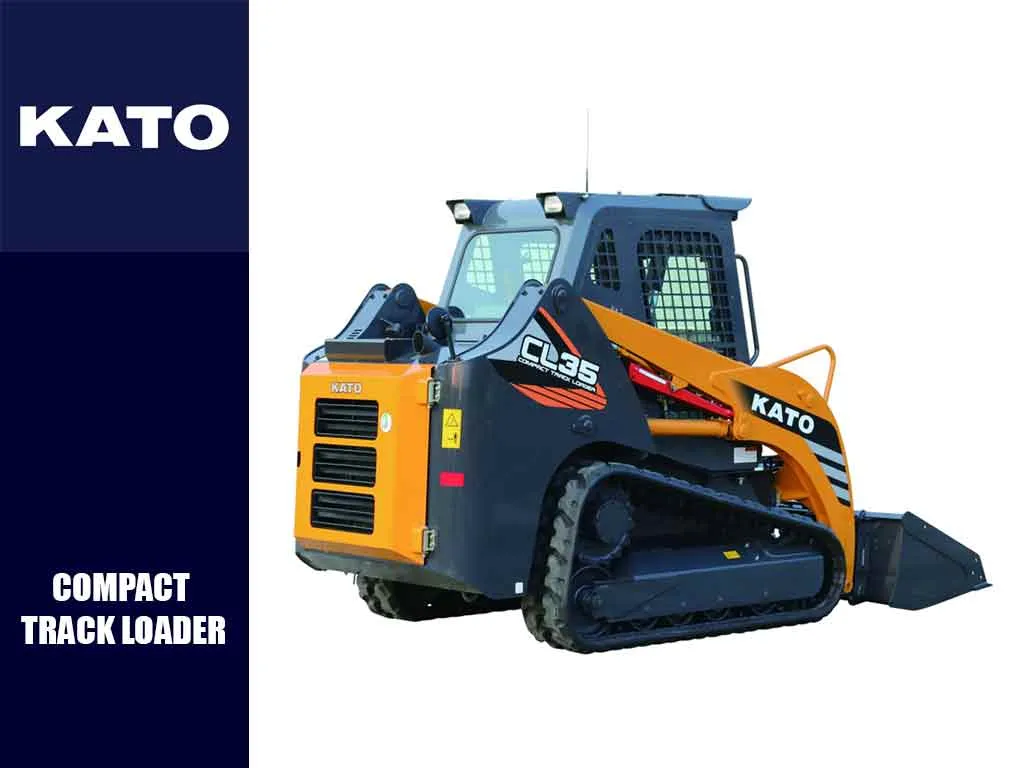

CL-35 Track Loader
Based on a rock-solid concept and heavy-duty construction, the CL35 Track Loader is designed to show off its high usability and functionality even in adverse working conditions. With a proven track record in heavy equipment, KATO’s hydraulic system accurately responds to the will of the operator. The CL35 offers comfort, ease of use, eco-friendliness, durability and reliability, as well as easy maintenance. Developed through the pursuit of what a track loader should do and what it should be, the CL35 is ready to revolutionize the way you work, wherever in the world you are.
TWO CONFIGURATIONS

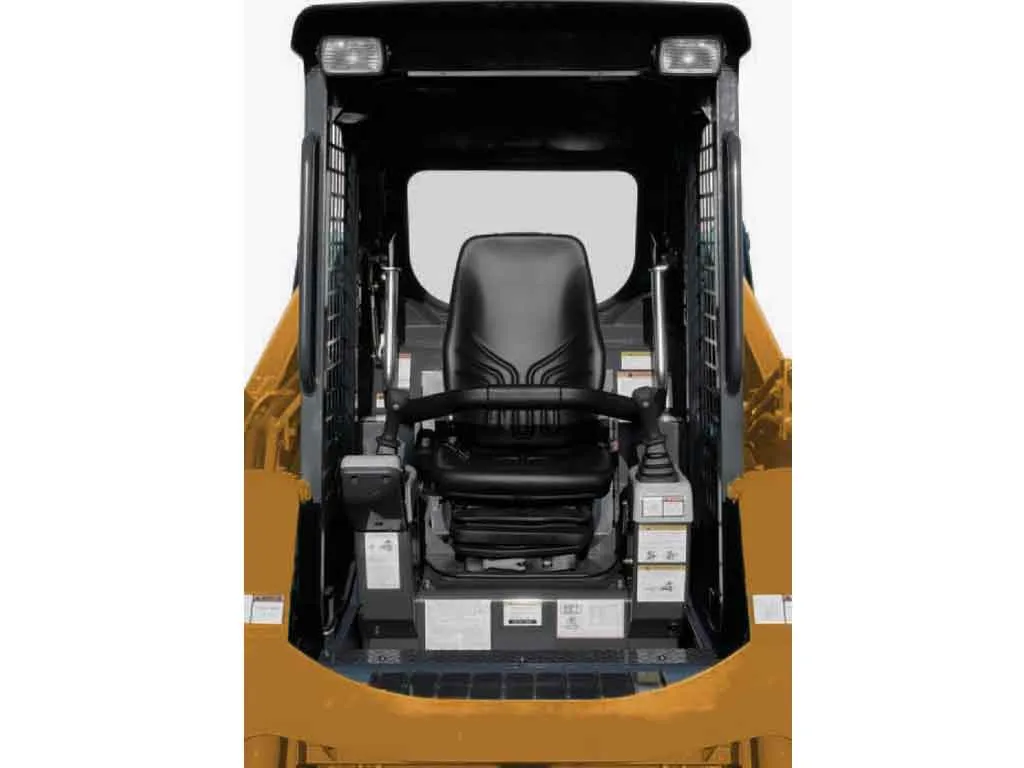

OROPS - CL35 with Tilt Up Operator's Compartment, Pilot Operated Joystick
Controls, Two Speed Travel, Aux Hydraulics, 12.6" Tracks, Universal
Quick Attach, Push Button Boom Arm Float
*Base Machine Excludes Bucket
EROPS - CL35 with Tilt Up Operator's Compartment, Pilot Operated Joystick
Controls, Two Speed Travel, Aux Hydraulics, 12.6" Tracks, Universal
Quick Attach, Push Button Boom Arm Float, CAB, HEAT & AC.
*Base Machine Excludes Bucket
| Description |
Specification |
| Tipping Load |
4916 lbs |
| Operating Weight |
7804 lbs |
| Bucket Breakout |
6474 lbs |
| Horse-power |
62 hp |
| Engine |
Kubota V2403-CR |
SPECIFICATIONS
Bucket Capacity
| Vessel Capacity Struck |
3.5 cu. yd. |
| Vessel Capacity Heaped |
5.0 cu. yd. |
| Bucket Capacity SAE Heaped |
14.3 cu. ft. |
Dimensions
| Bucket Width |
5'8 |
| Dump Clearance |
2'8 |
| Max Dumping Angle |
60° |
| Height From Ground |
3'10 |
Weights
| Transportation Weight |
7,645 lbs. |
| Operating Weight |
7,826 lbs. |
Performance
| Travel Speed - High |
6.2 mph |
| Travel Speed - Low |
4.2 mph |
